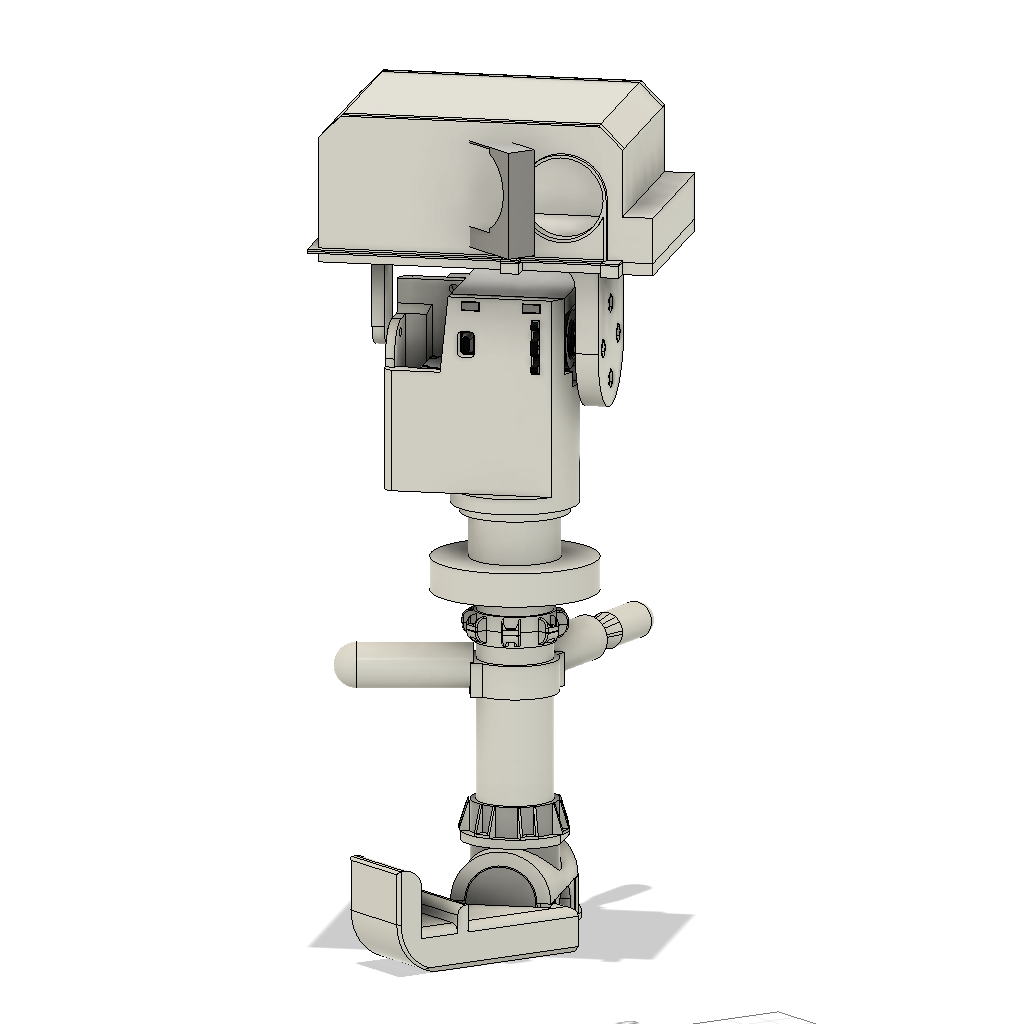

Camera System — assembled view
⚠️ Disclaimer
Some parts may be duplicates. Because these parts have not yet been printed and verified,
each is listed separately. This list will be updated once physical prints are confirmed.
🖨 Printable Parts
20 partsPrint these on your printer of choice. PETG or better recommended.

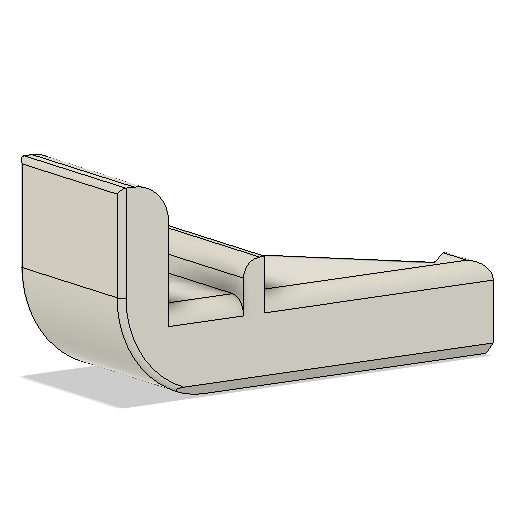

Base Arm3D Print

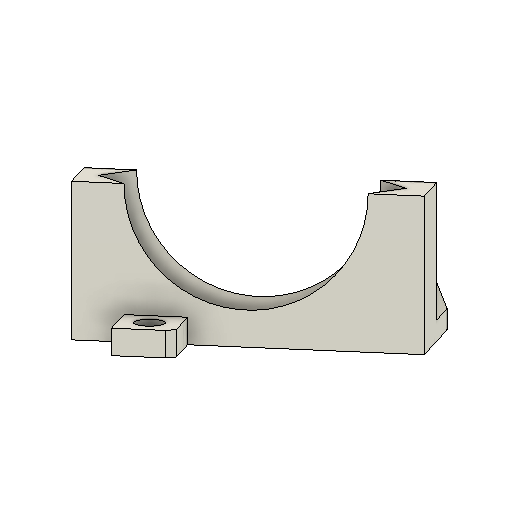

Base Connector Back Piece3D Print

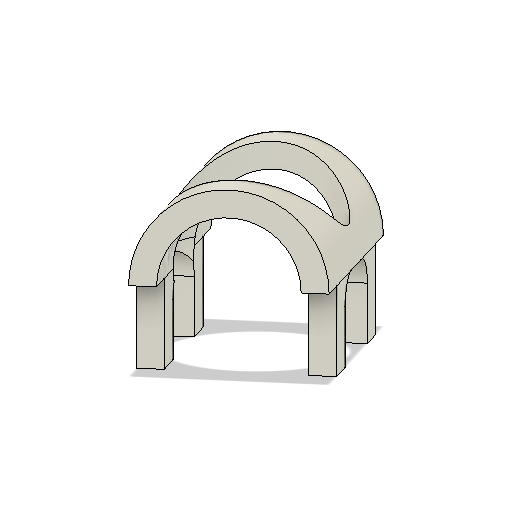

Base Connector to Shaft3D Print

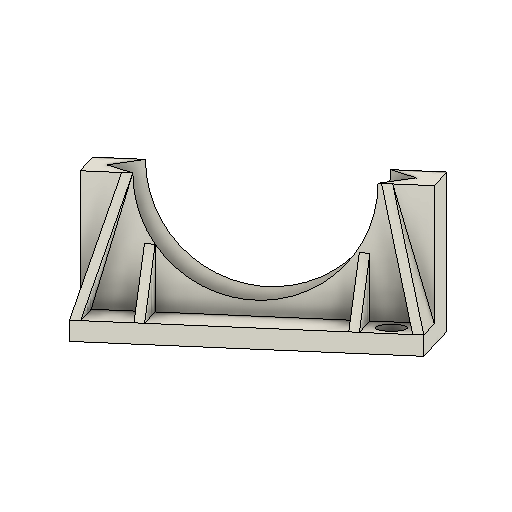

Base to Arm Connector3D Print

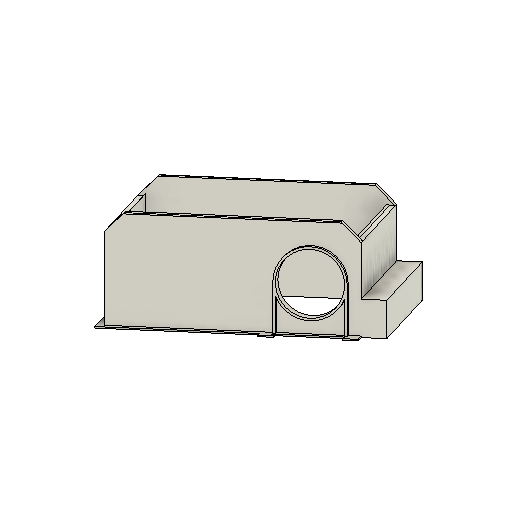

Camera Platform Main Body3D Print
Camera Platform Top3D Print
Camera Tilt Head Platform3D Print

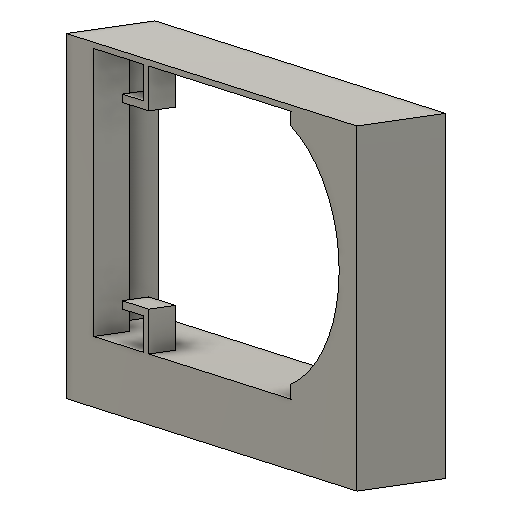

ESP Camera Mount3D Print
Grip Left3D Print

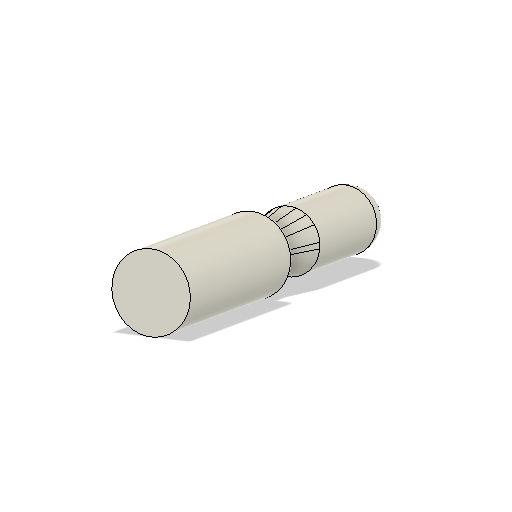

Grip Right3D Print
Grip Shaft Mount3D Print

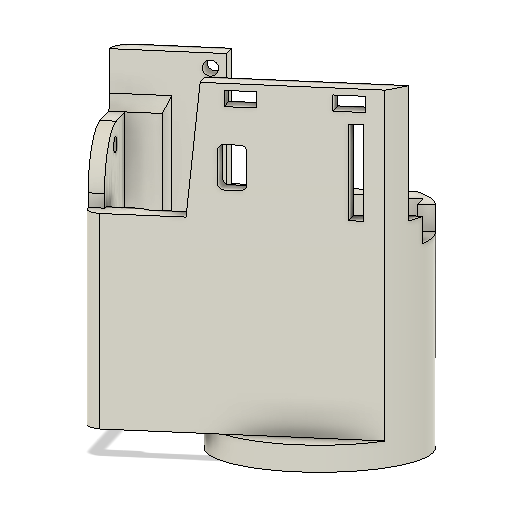

Main Head Body3D Print
Main Head to Shaft Servo Gear Connector3D Print
Main Shaft3D Print

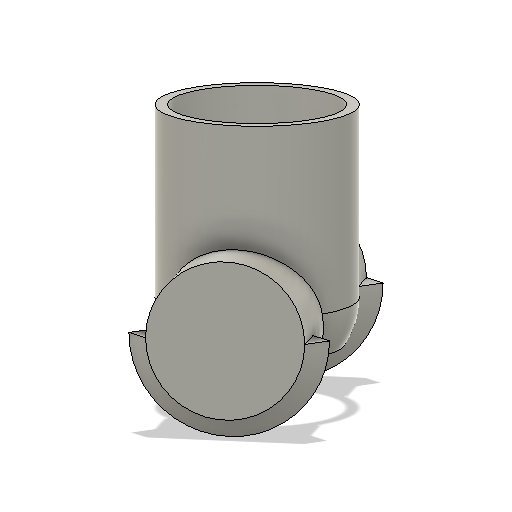

Main Shaft Base Pivot3D Print

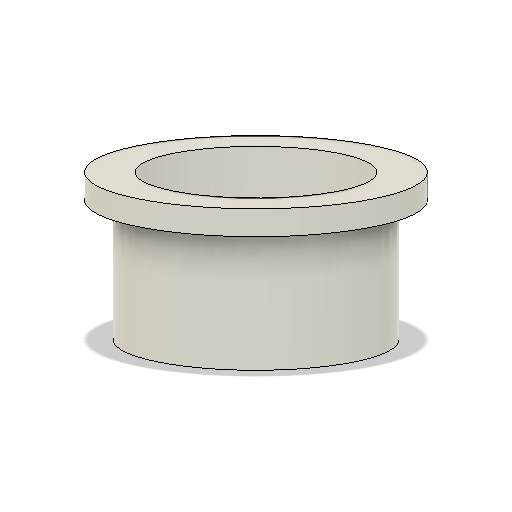

Main Shaft to Main Head Connector3D Print

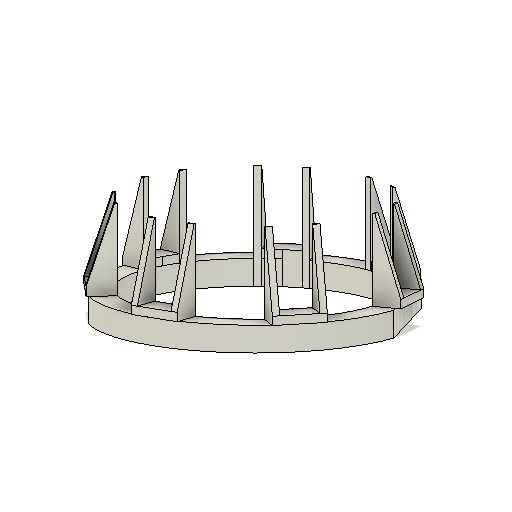

Shaft Bottom Connector3D Print

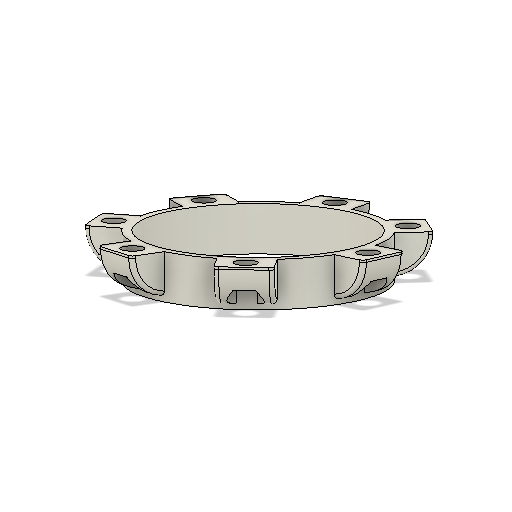

Top Main Shaft Connector Part B3D Print

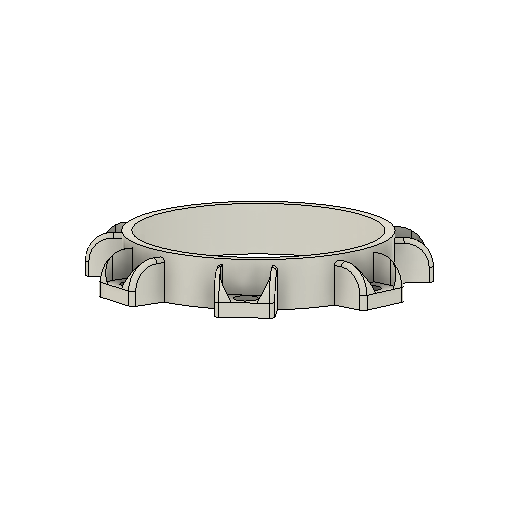

Top Shaft Connector Part A3D Print
Top Shaft to Main Head Connector3D Print
🔁 Common Printing Objects
2 types × 2 eachThese parts are shared across the camera sub-assemblies. Each must be printed 2×.
Servo MG996R Casings3D Print × 2
Servo MG996R Door Panel3D Print × 2
🛒 Parts to Purchase
HardwareThe following items must be purchased. Order the exact part or a dimensionally equivalent substitute.
MG996R or DS3218 Servo ×2Purchase
MG996R or DS3218 Pro 20KG 180° digital servo
Servo Bolt ×8Purchase
Standard servo mounting bolt — 8 required
Servo MG996R Horn ×1Purchase
Standard MG996R servo horn
