🤖 Rover Parts Catalog

Other Body Parts — all printable parts

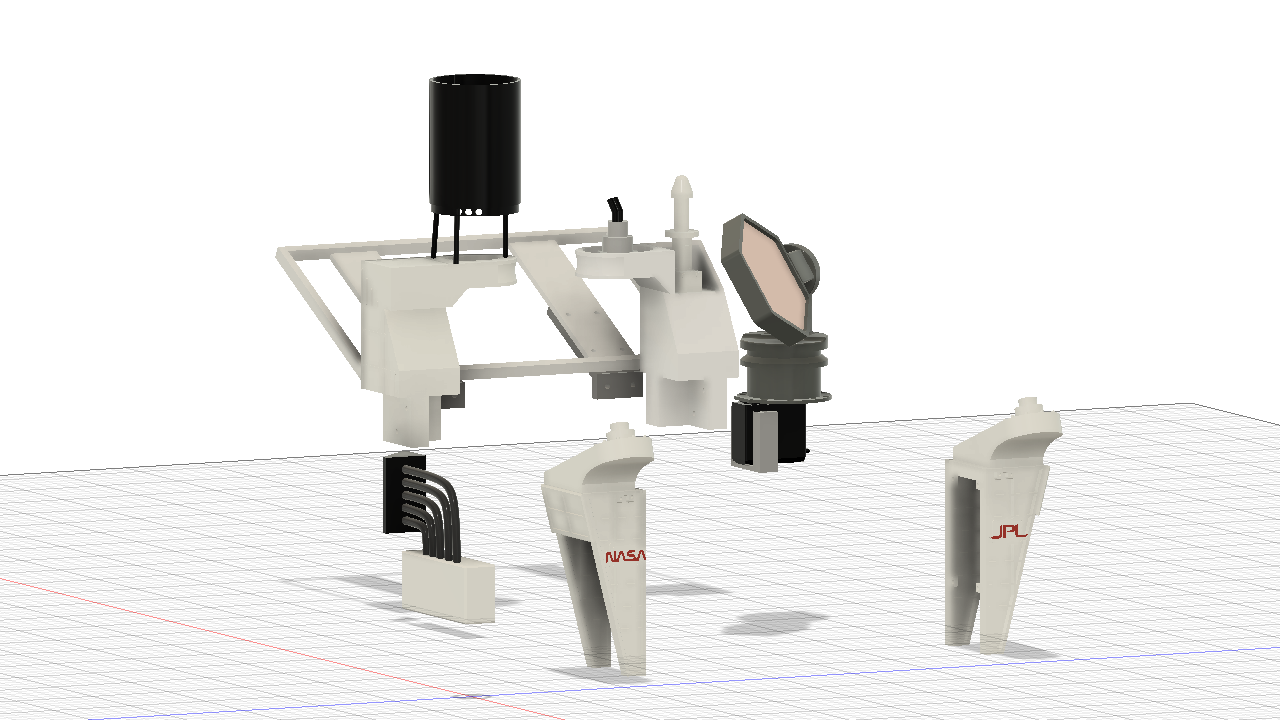

Other Body Parts assembled

Other Body Parts — assembled view

⚠️ Disclaimer Some parts may be duplicates or subject to change once physical prints are verified. Parts marked ×2 or ×4 are the same part printed multiple times.

💧 Tank

7 parts

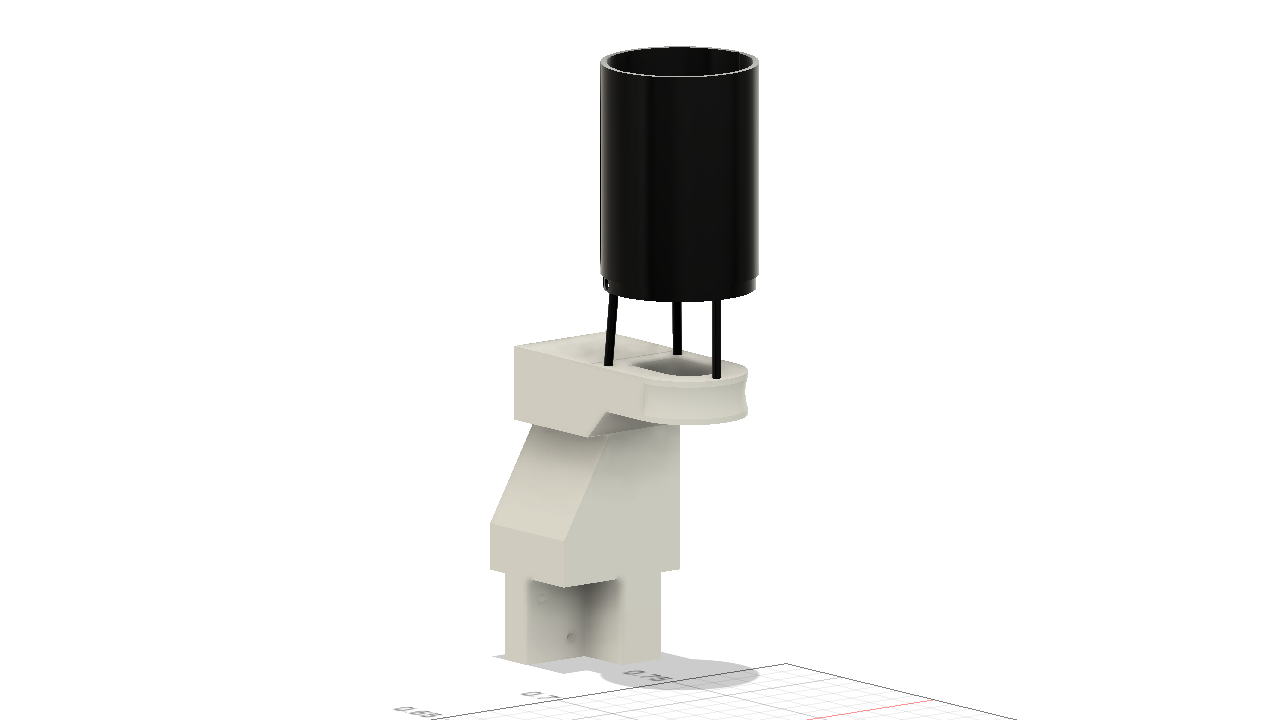

Tank assembled
Tank — assembled
Tank Bottom
Tank Bottom3D Print
Tank Leg B
Tank Leg B3D Print
Tank Bottom Ring
Tank Bottom Ring3D Print

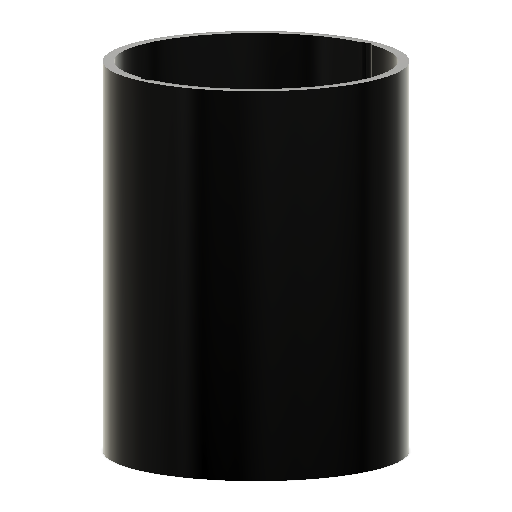

Tank Main Body
Tank Main Body3D Print
Tank Leg
Tank Leg3D Print ×2

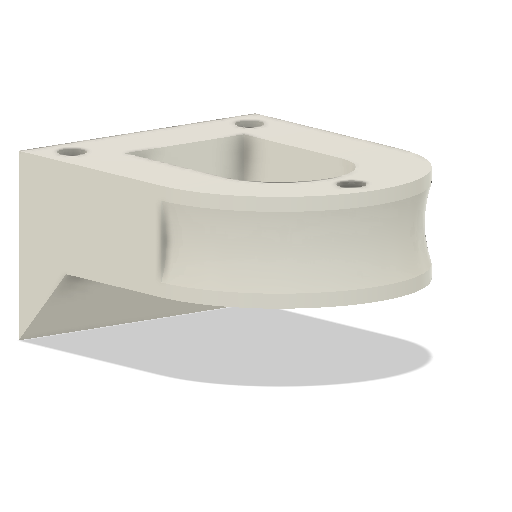

Tank Mount
Tank Mount3D Print

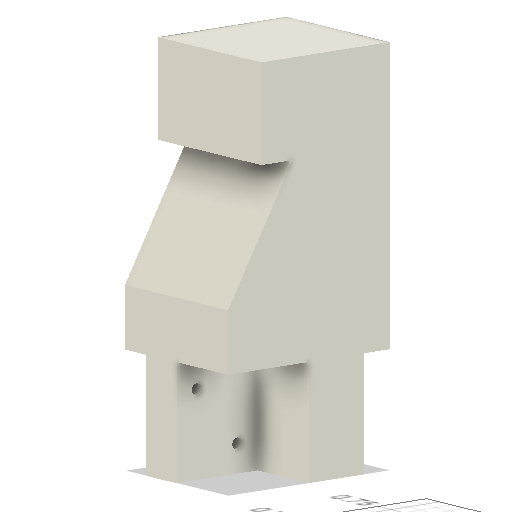

Tank Body Connector
Tank Body Connector3D Print

📡 Antenna

8 parts

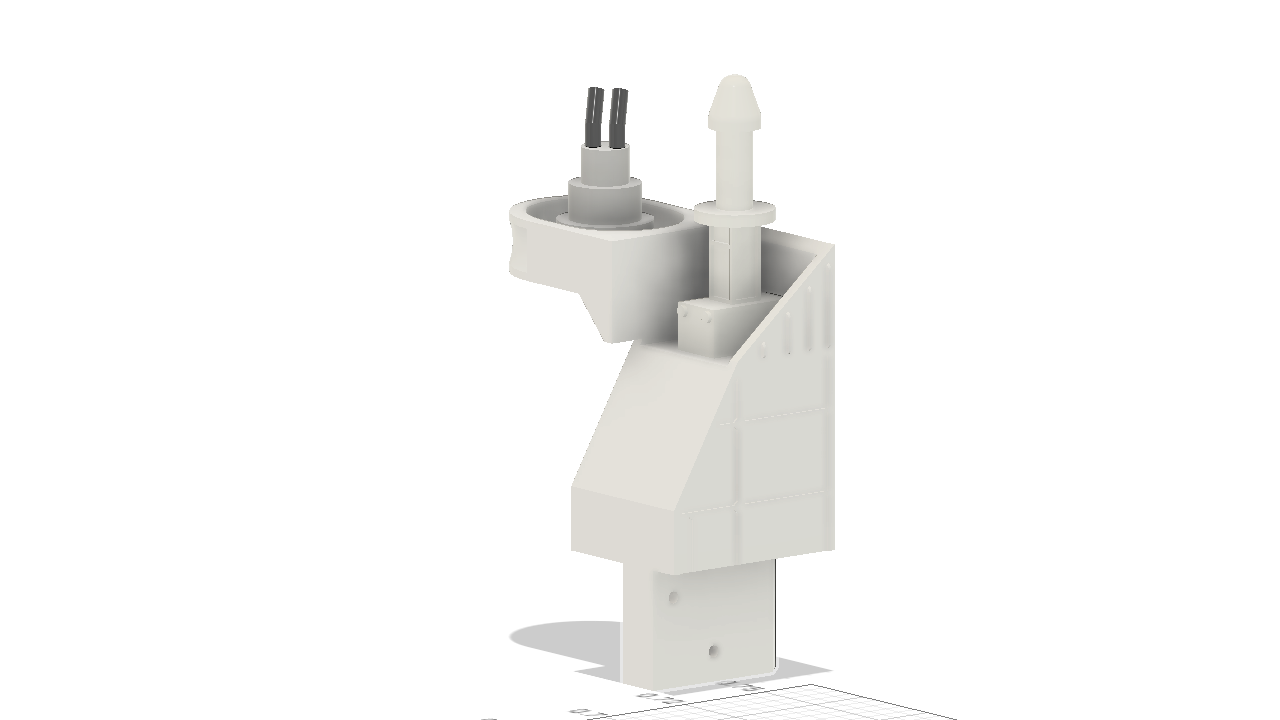

Antenna assembled
Antenna — assembled

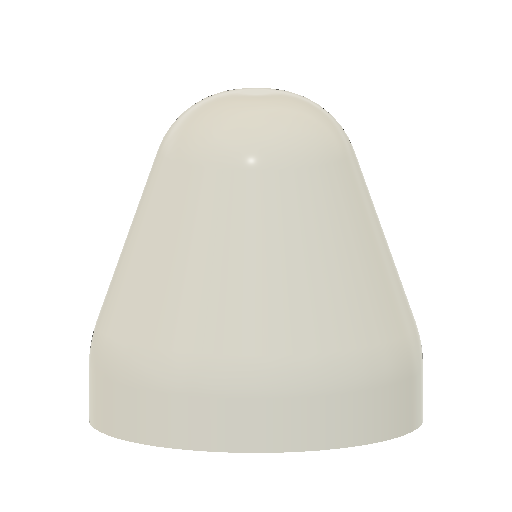

AT Big Tip
AT Big Tip3D Print
AT Big Tip Middle
AT Big Tip Middle3D Print

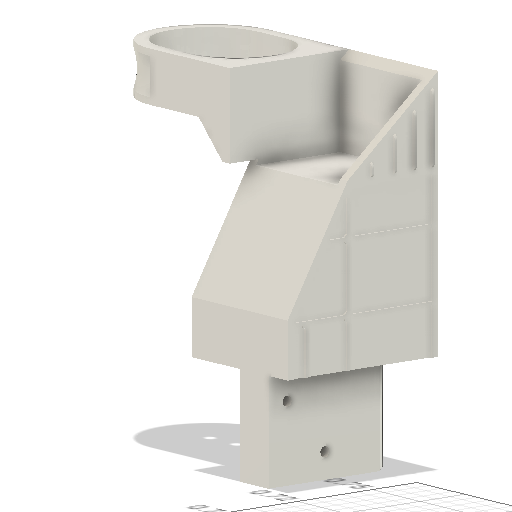

AT Main Base
AT Main Base3D Print

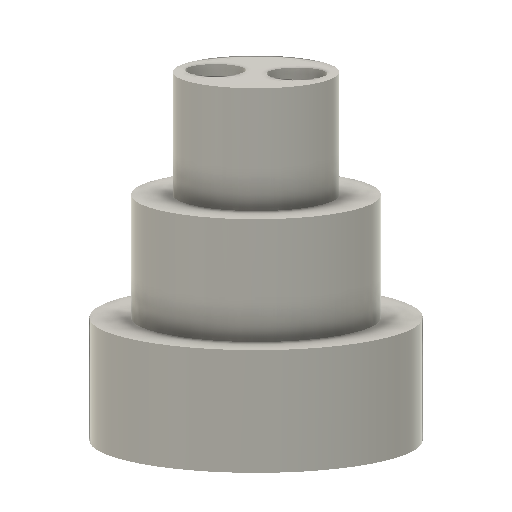

AT Double Antenna Base
AT Double Antenna Base3D Print

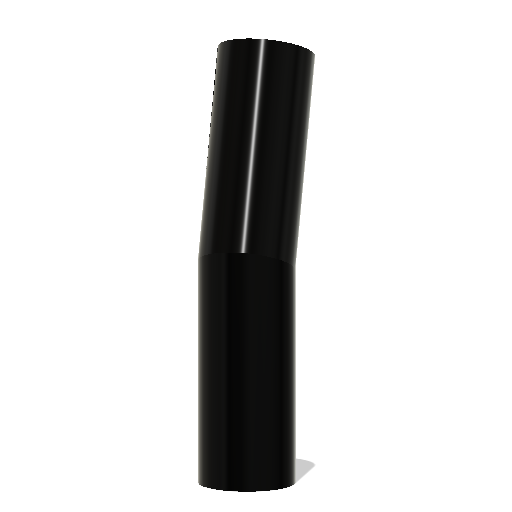

AT Small Antenna
AT Small Antenna3D Print ×2

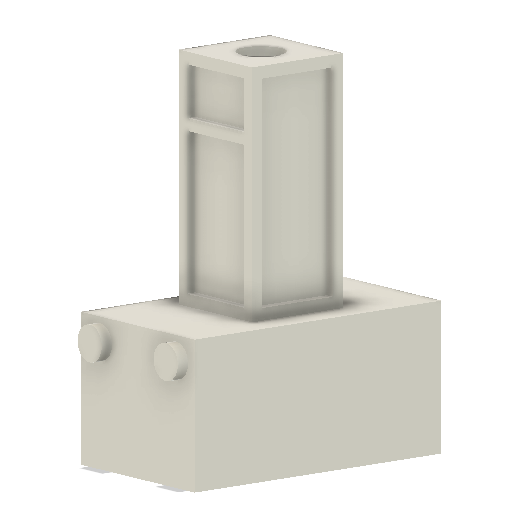

AT Big Antenna Base
AT Big Antenna Base3D Print
AT Big Tip Circle Base
AT Big Tip Circle Base3D Print
AT Big Tip Insert
AT Big Tip Insert3D Print

❄️ Cooling

8 parts

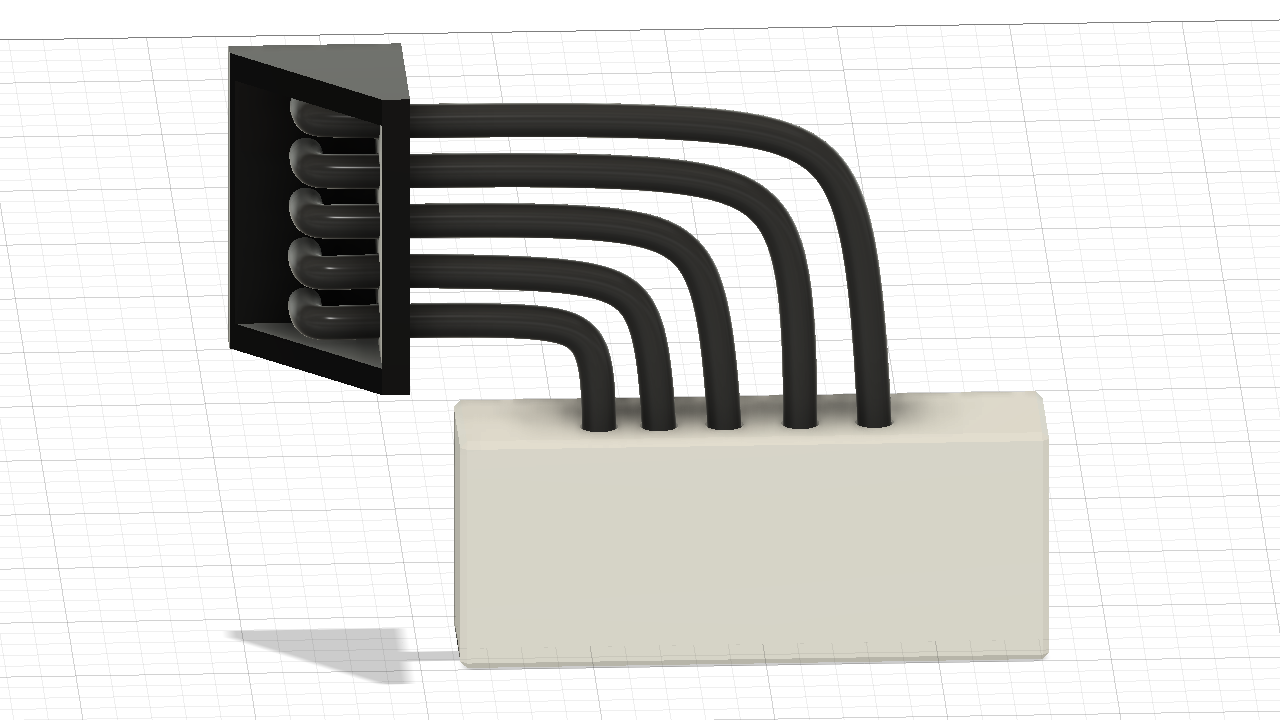

Cooling assembled
Cooling — assembled

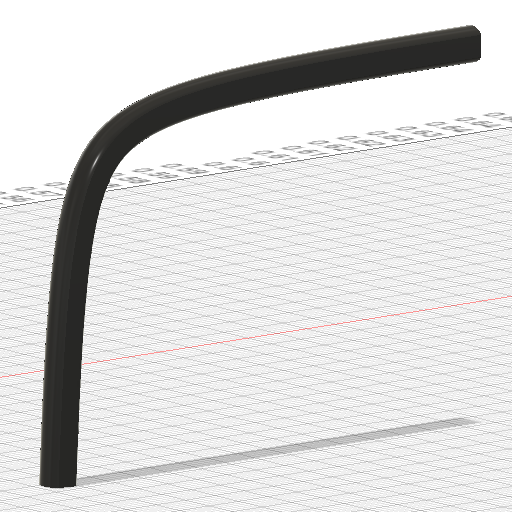

Cooling Tube A
Cooling Tube A3D Print

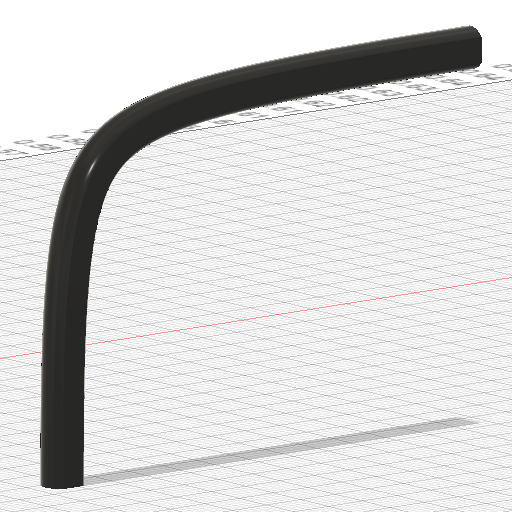

Cooling Tube B
Cooling Tube B3D Print

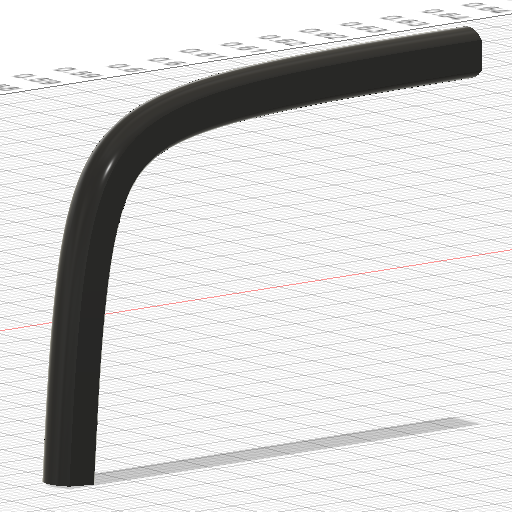

Cooling Tube C
Cooling Tube C3D Print

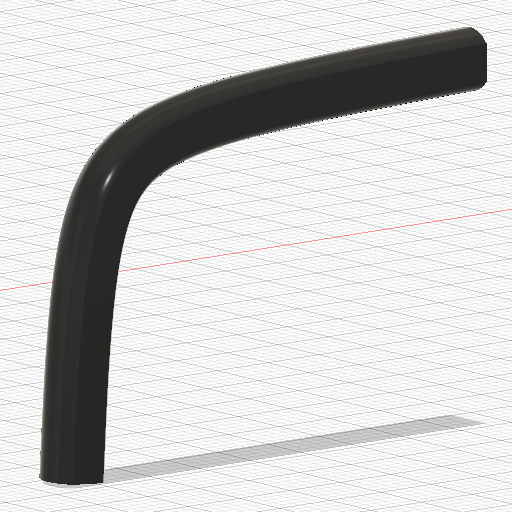

Cooling Tube D
Cooling Tube D3D Print

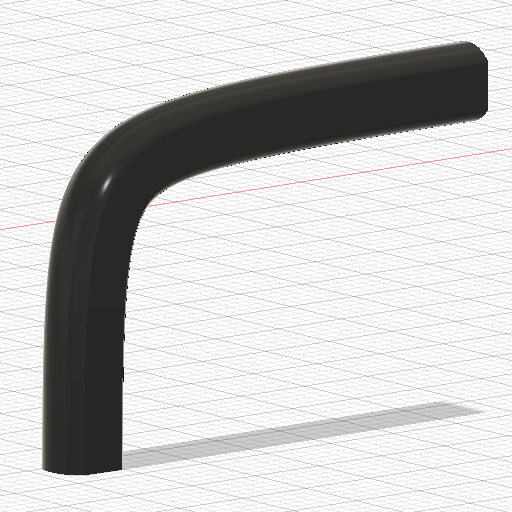

Cooling Tube E
Cooling Tube E3D Print

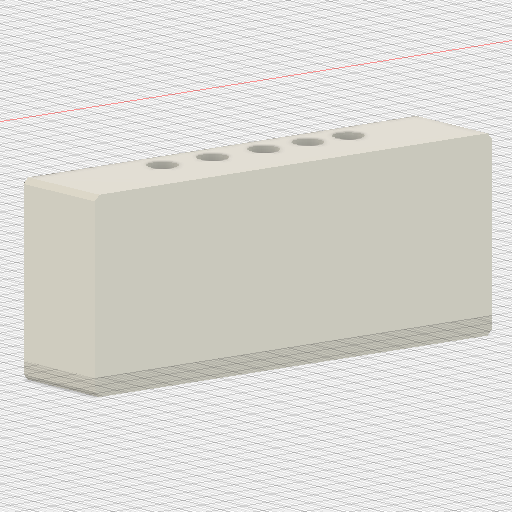

Cooling Tube Bottom Mount
Cooling Tube Bottom Mount3D Print

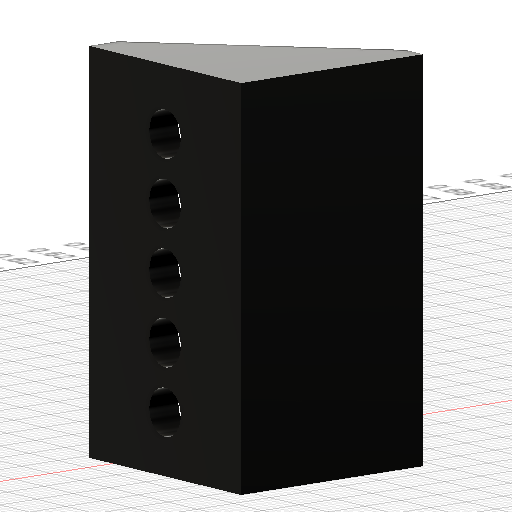

Cooling Tube Top Mount
Cooling Tube Top Mount3D Print

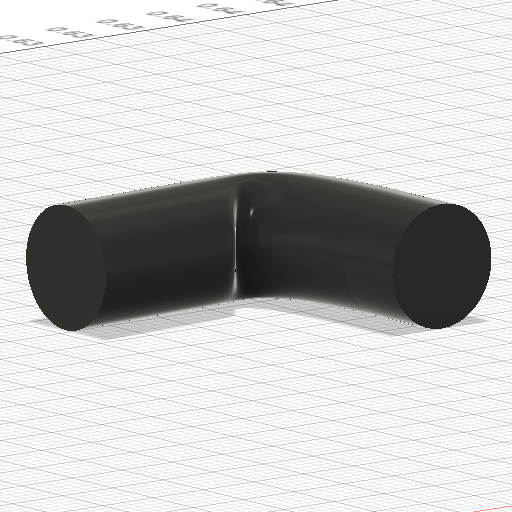

Cooling Tube Small
Cooling Tube Small3D Print ×5

☀️ Solar

6 parts

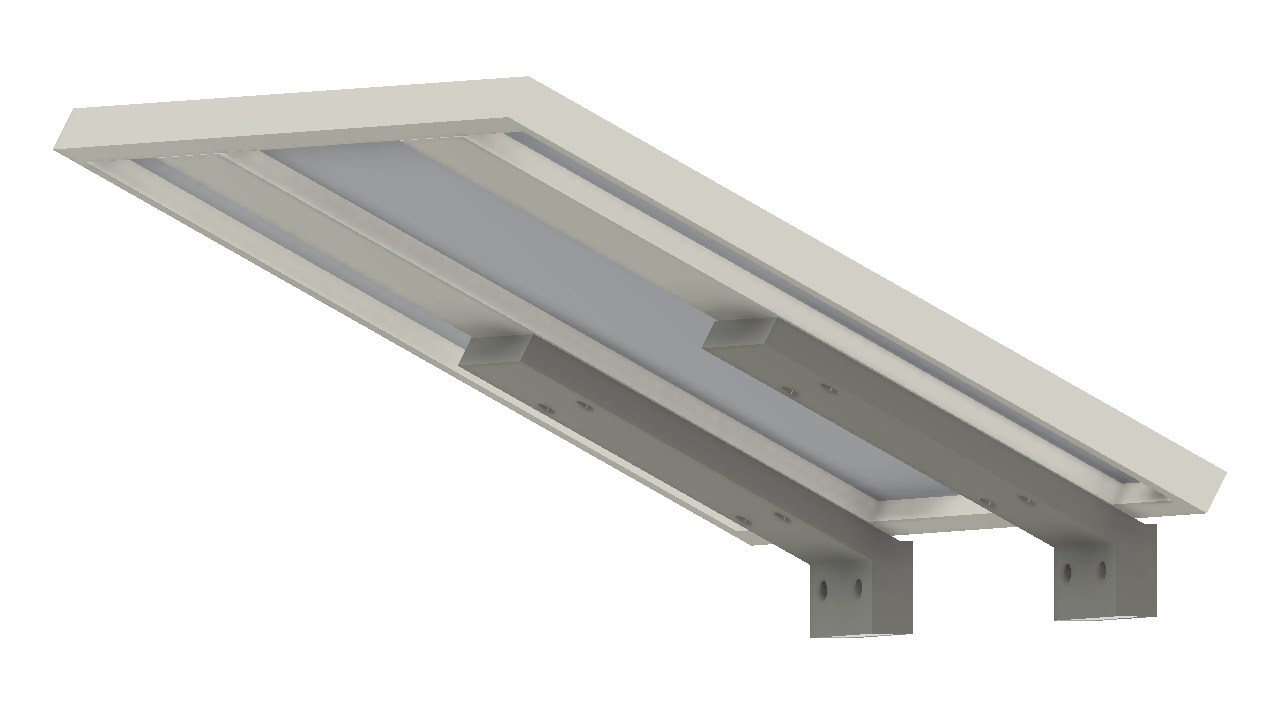

Solar assembled
Solar — assembled

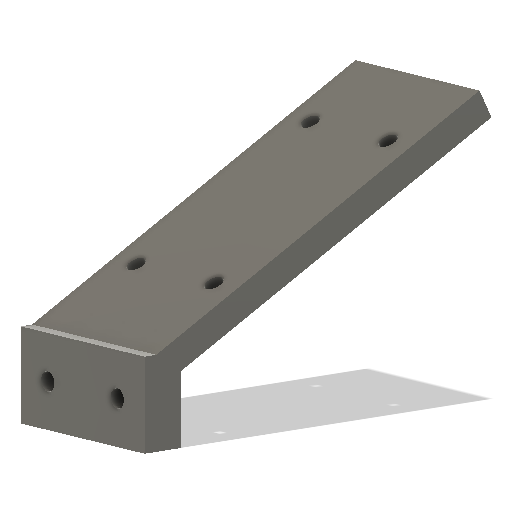

Solar Mounting Bracket
Solar Mounting Bracket3D Print ×2

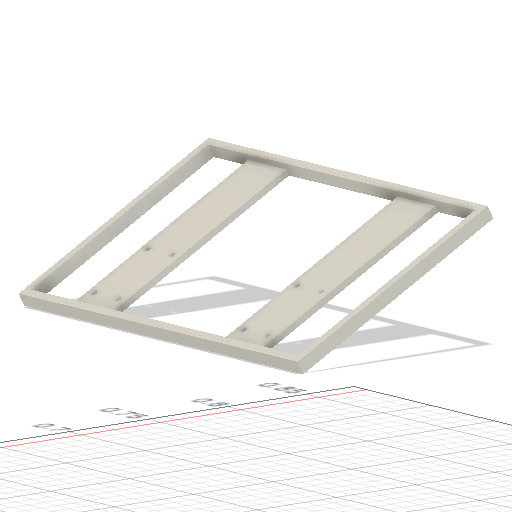

Panel Frame
Panel Frame3D Print

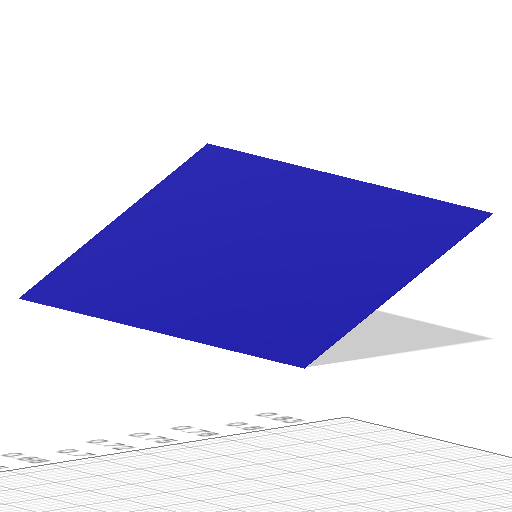

Solar Array Front
Solar Array Front3D Print
Solar Array Rail
Solar Array Rail3D Print

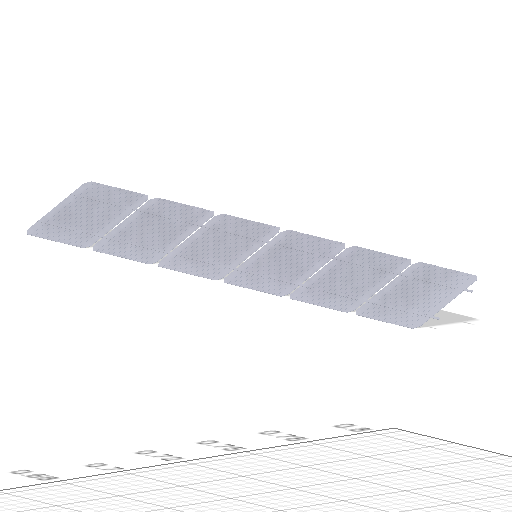

Array
Array3D Print ×4

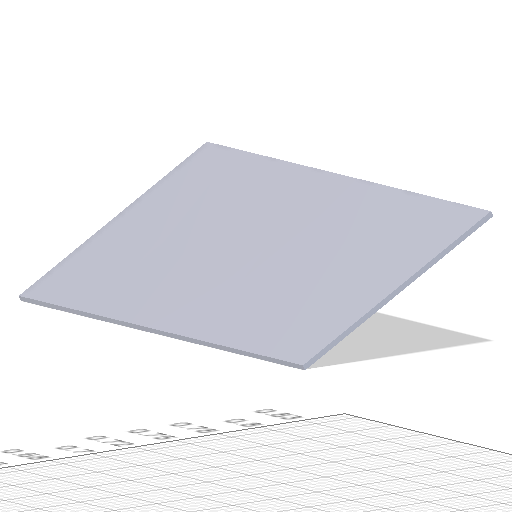

Back Array
Back Array3D Print

🔧 Side Mounts

9 parts

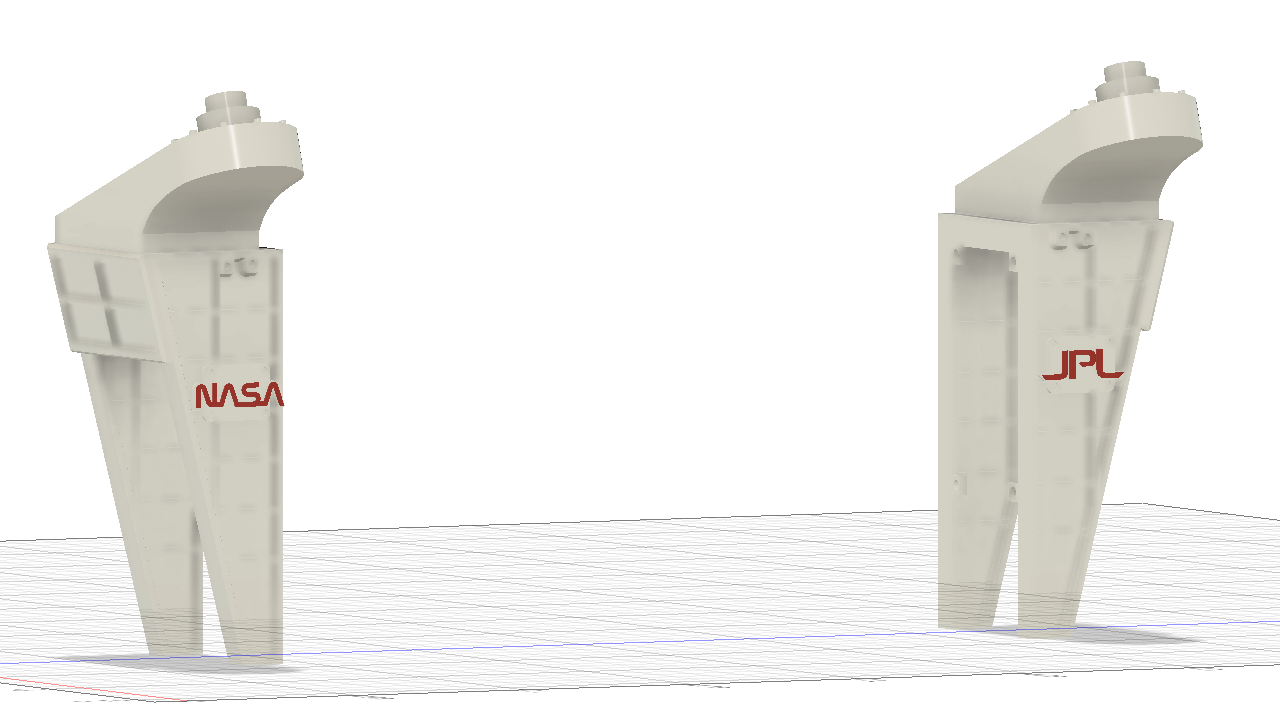

Side Mounts assembled
Side Mounts — assembled

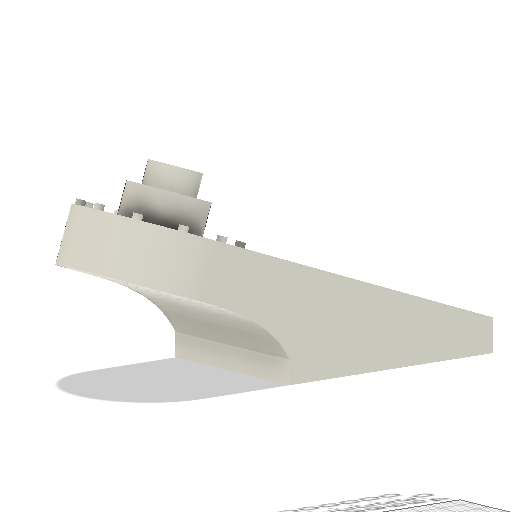

SM Top
SM Top3D Print ×2

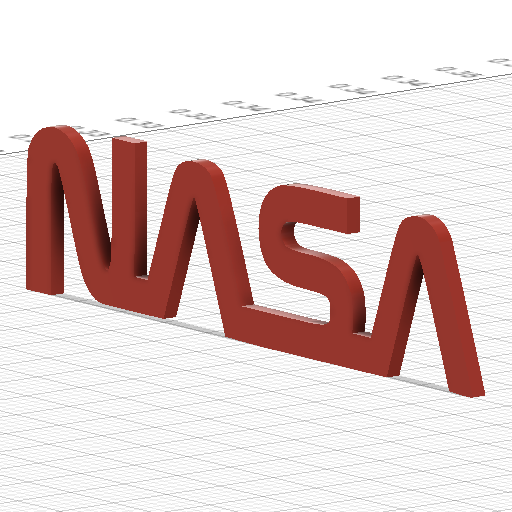

SM R NASA
SM R NASA3D Print

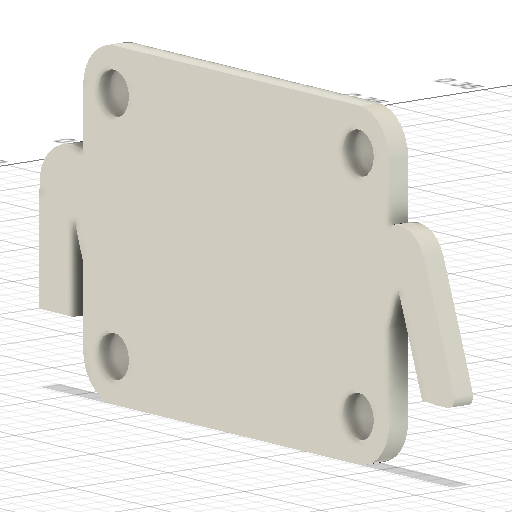

SM R Letter Plate
SM R Letter Plate3D Print

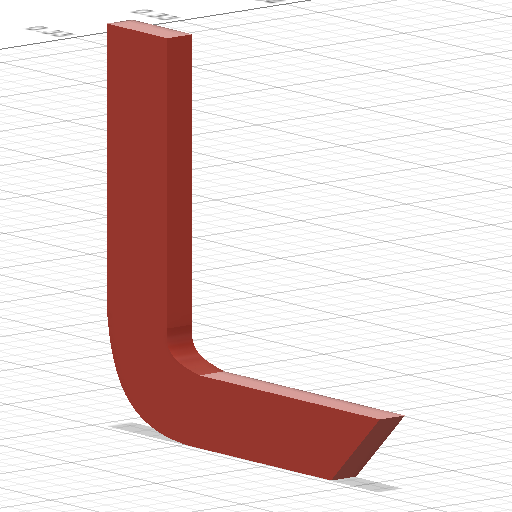

SM L L
SM L L3D Print

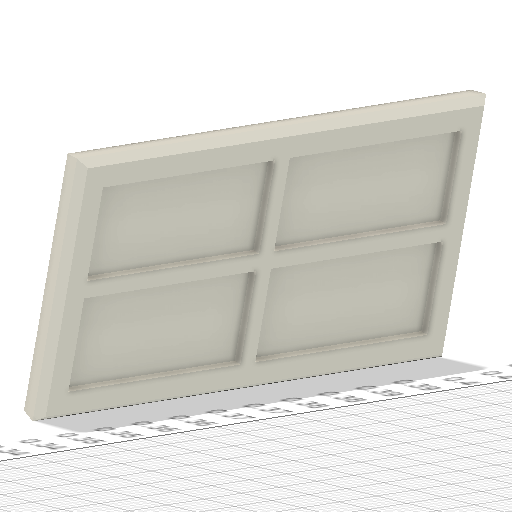

SM Side Plate
SM Side Plate3D Print ×2

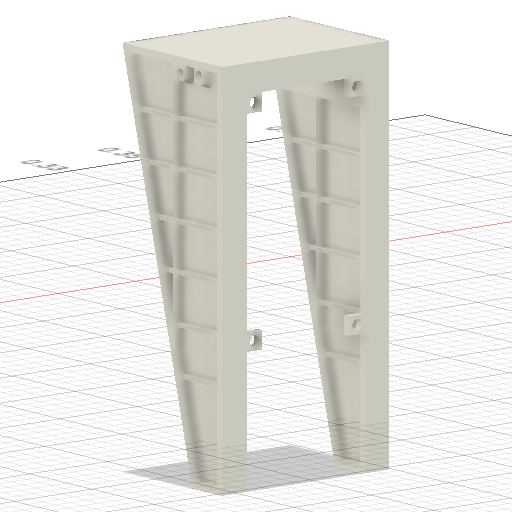

SM Main Body
SM Main Body3D Print ×2

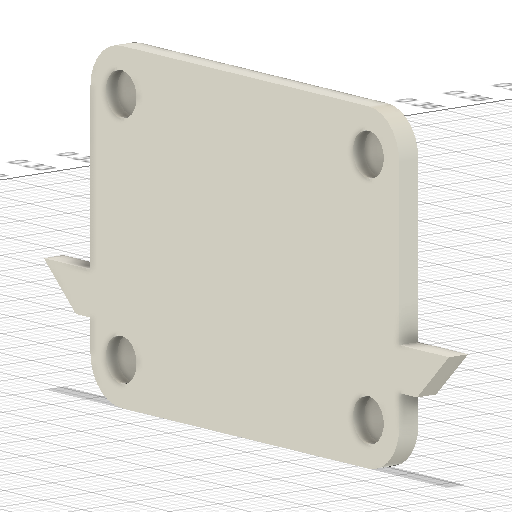

SM L Letter Plate
SM L Letter Plate3D Print

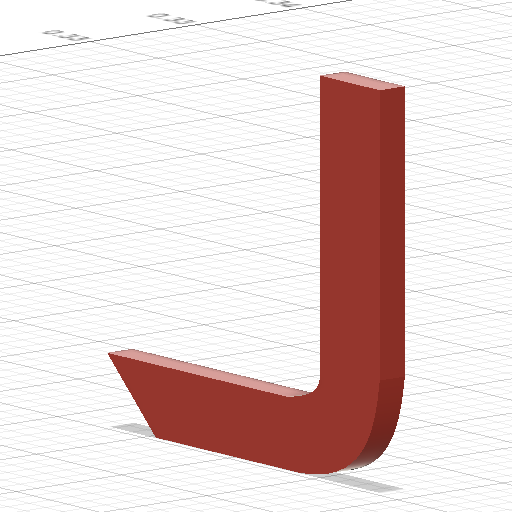

SM L J
SM L J3D Print

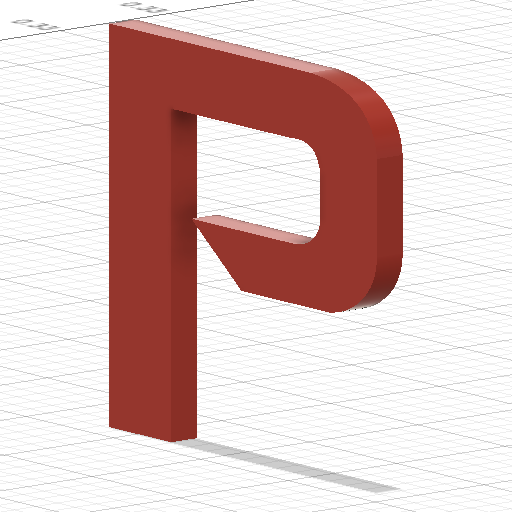

SM L P
SM L P3D Print

🪟 Box & Window

5 parts

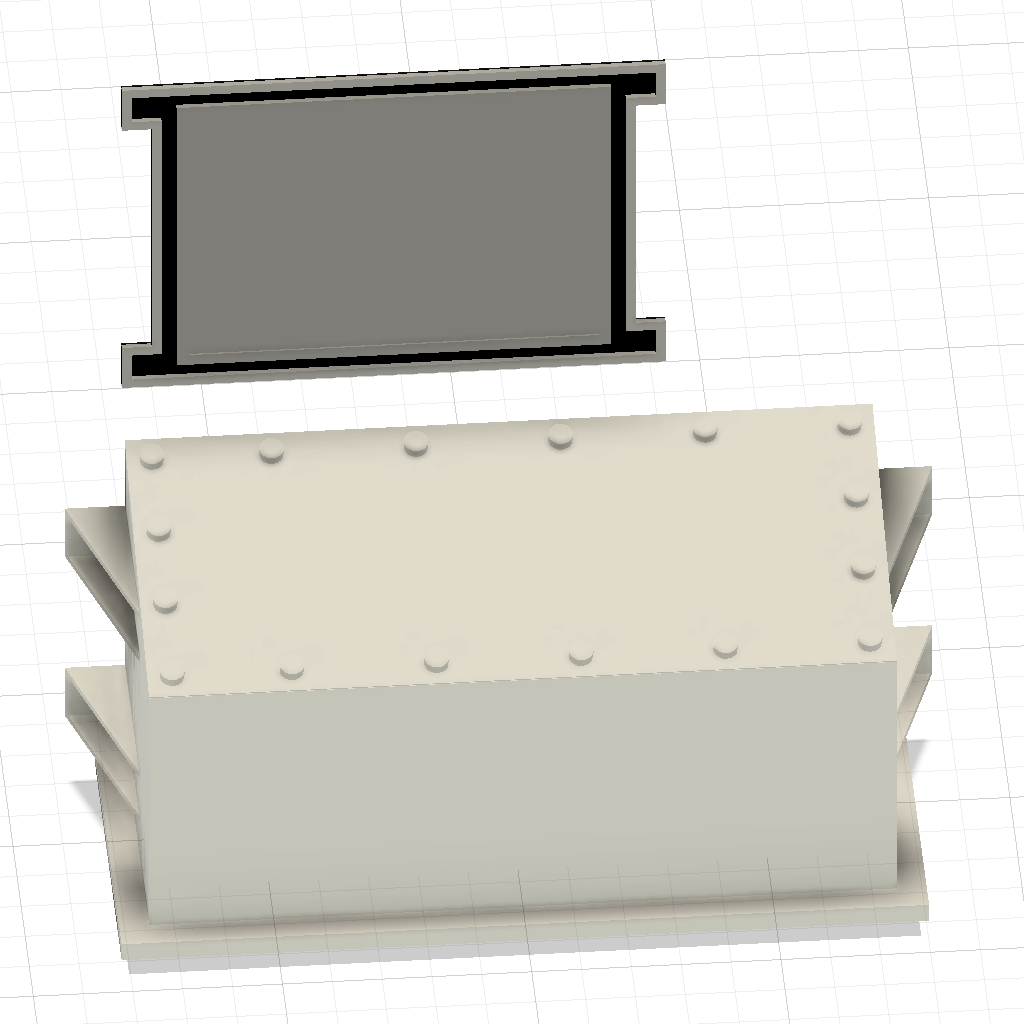

Box & Window assembled
Box & Window — assembled

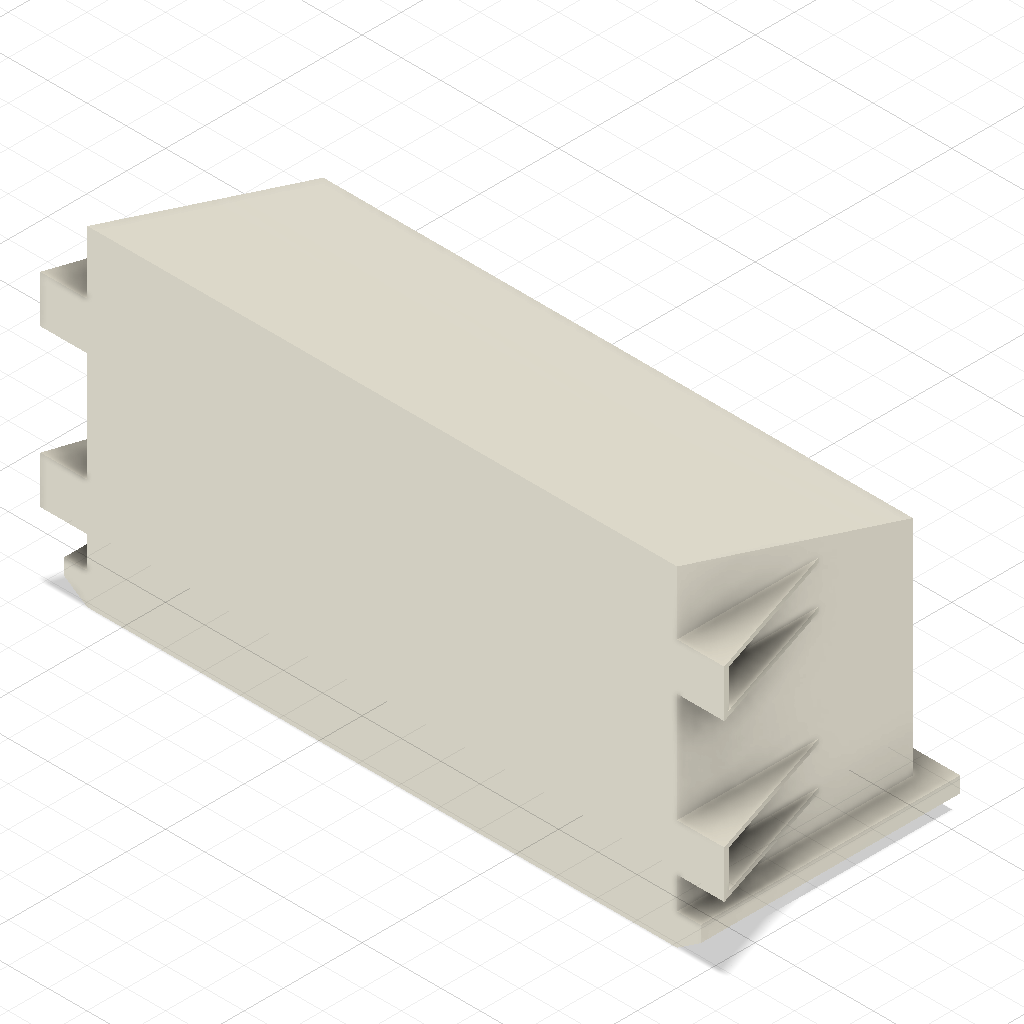

SBW Side Box Main
SBW Side Box Main3D Print

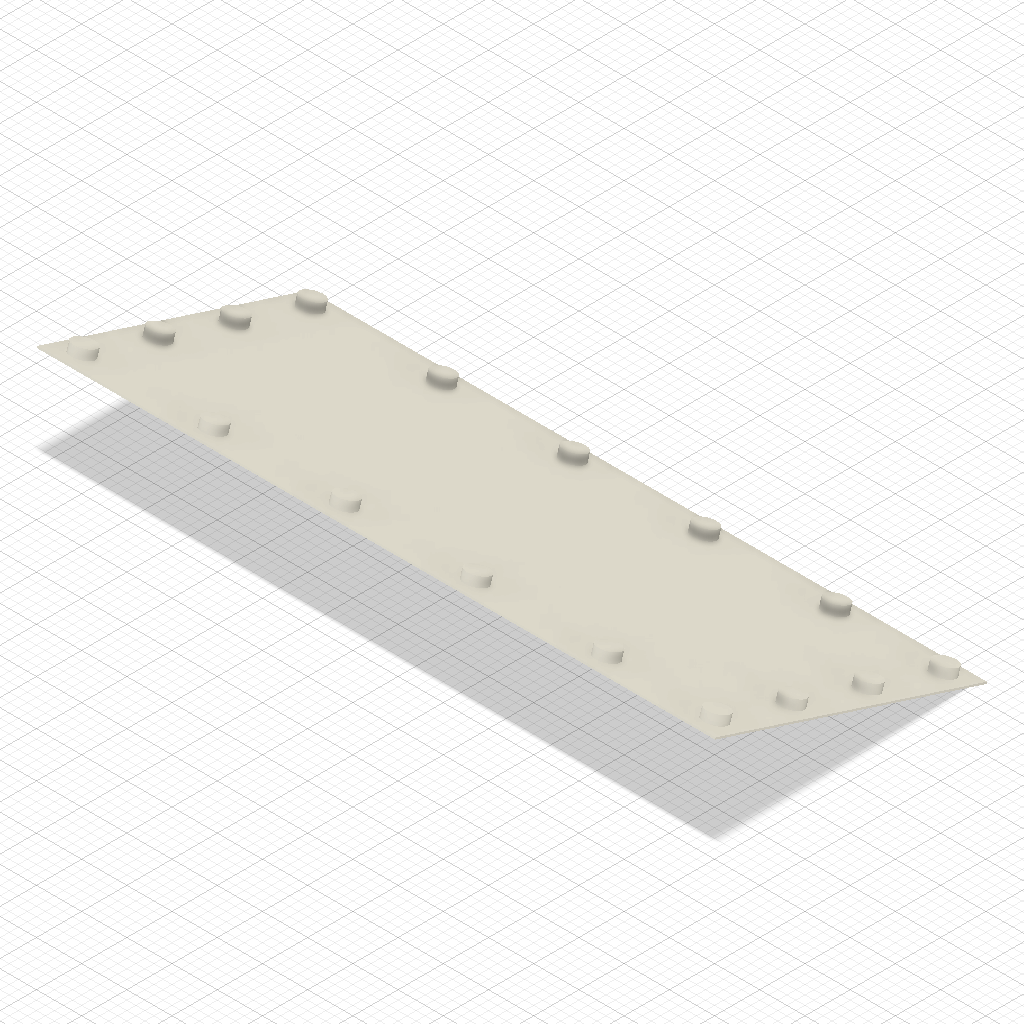

SBW Side Box Lid
SBW Side Box Lid3D Print

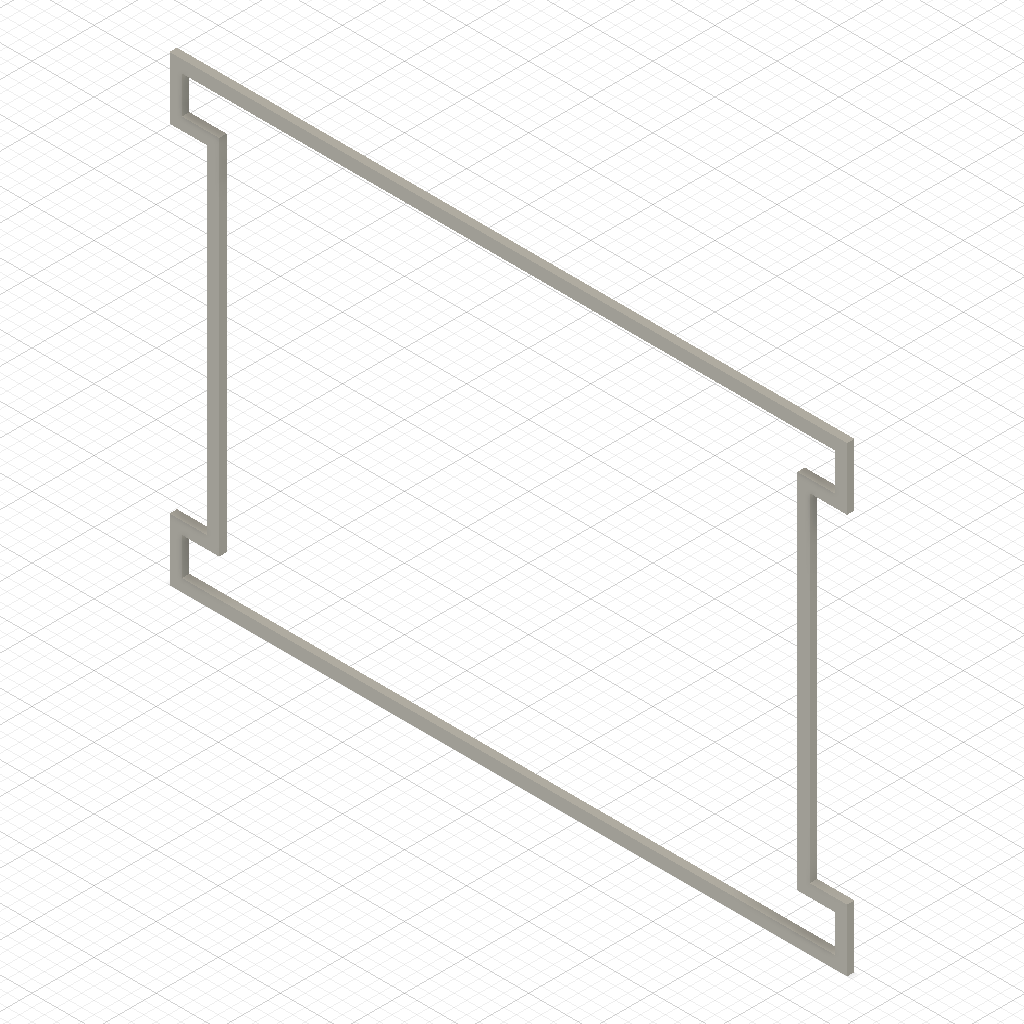

SBW Window Frame
SBW Window Frame3D Print

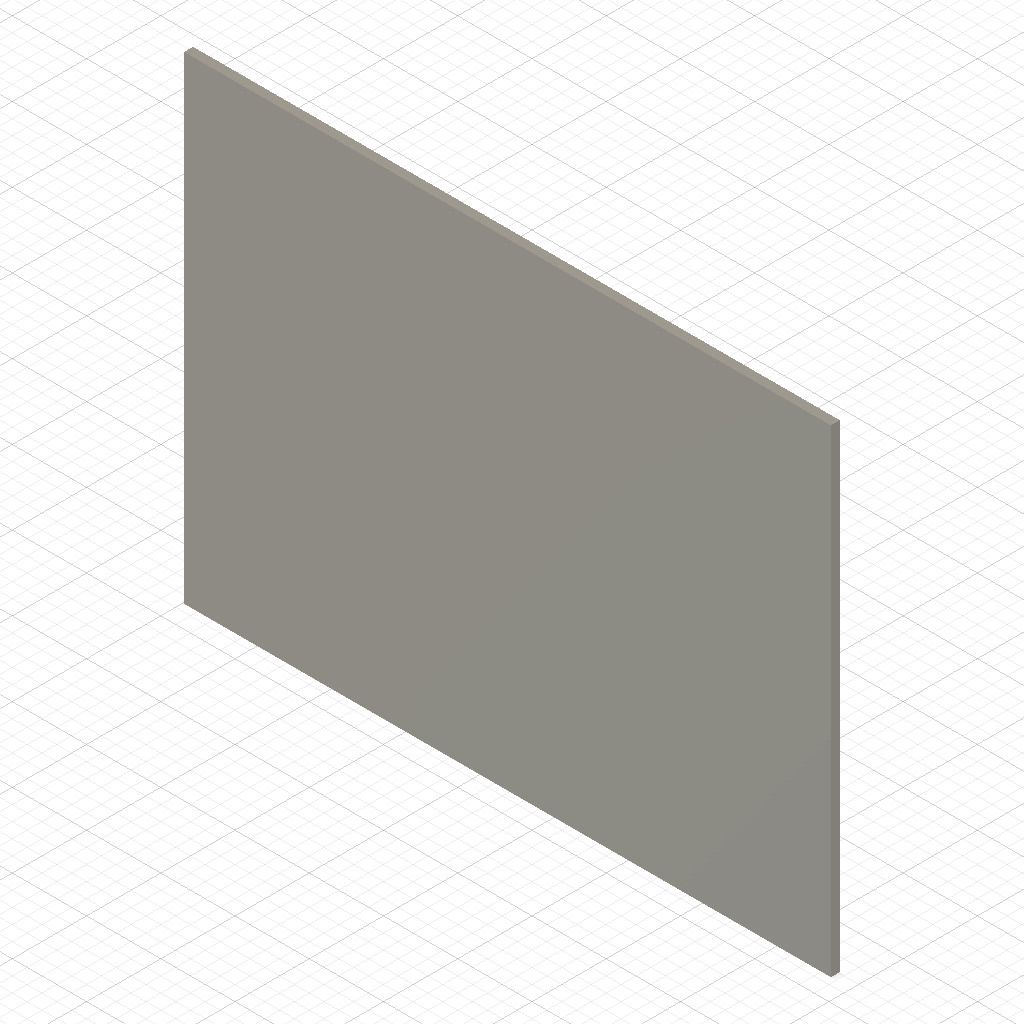

SBW Window Main
SBW Window Main3D Print
SBW Window Mount
SBW Window Mount3D Print

🗺️ Mirror

9 parts

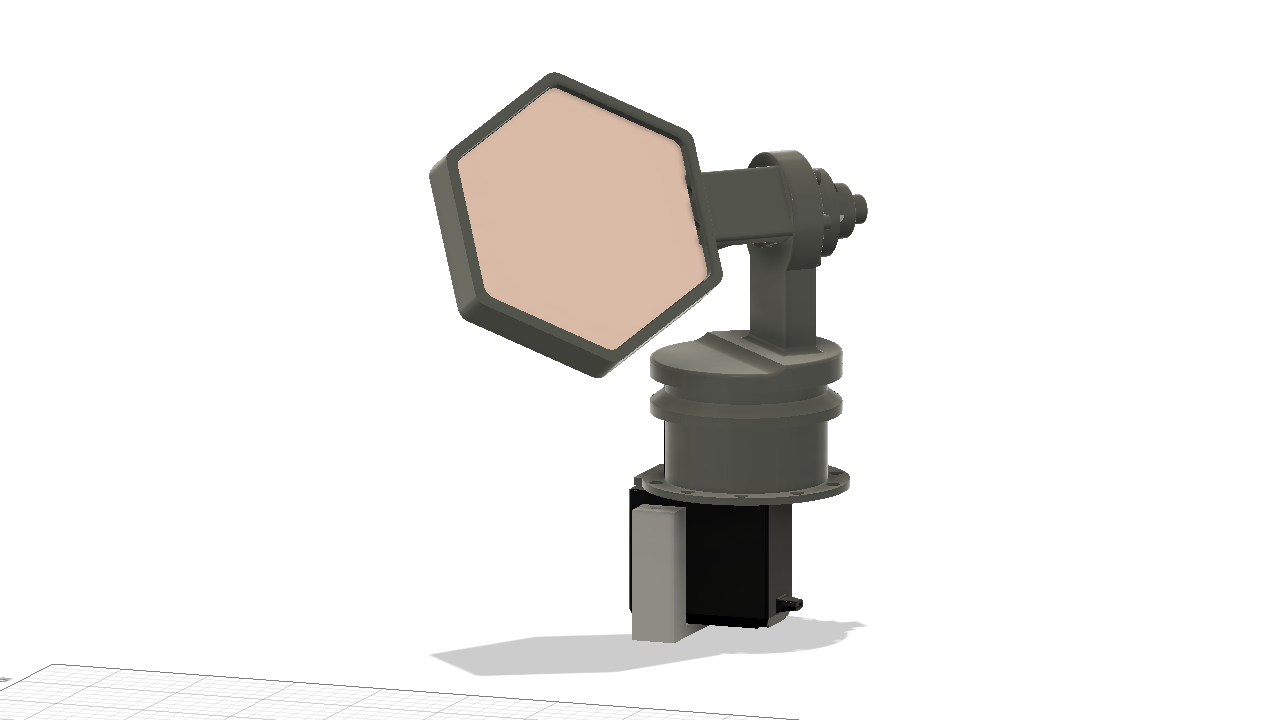

Mirror assembled
Mirror — assembled

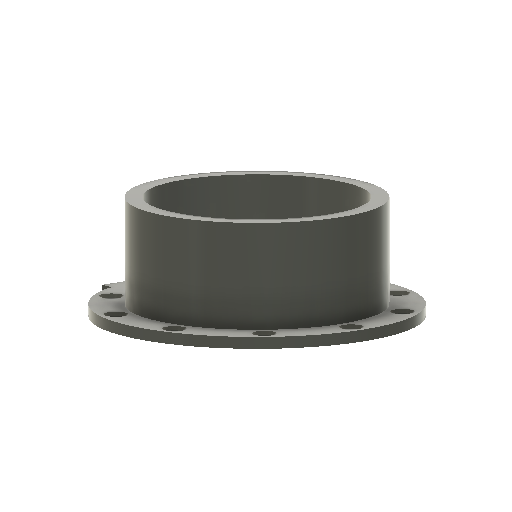

M Bottom Base Rotation
M Bottom Base Rotation3D Print

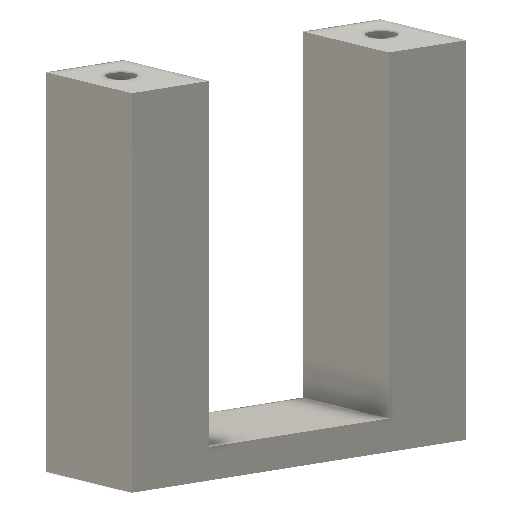

M Servo Under Body Mount
M Servo Under Body Mount3D Print

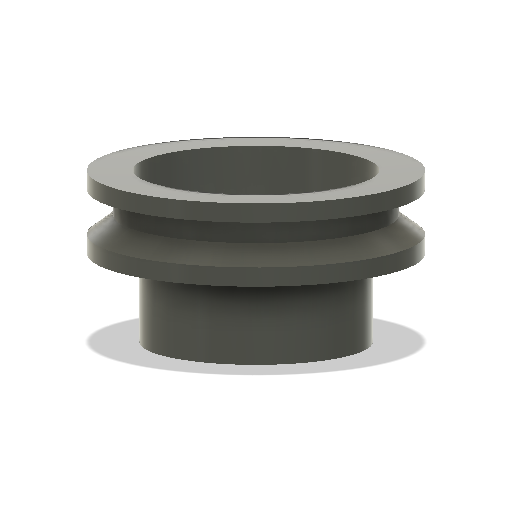

M Inner to Bottom of Base Rotation
M Inner to Bottom of Base Rotation3D Print
M Mirror
M Mirror3D Print

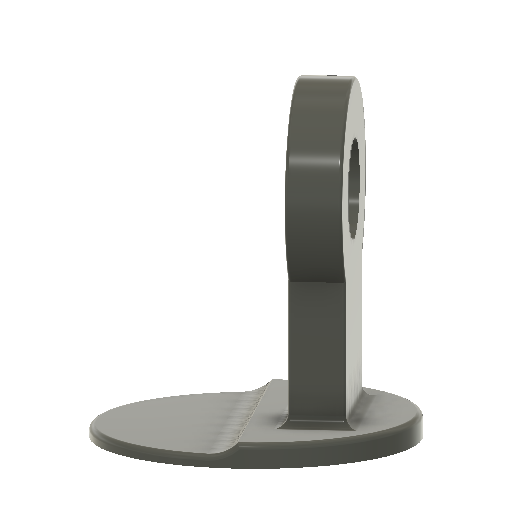

M Arm Holder Mount
M Arm Holder Mount3D Print

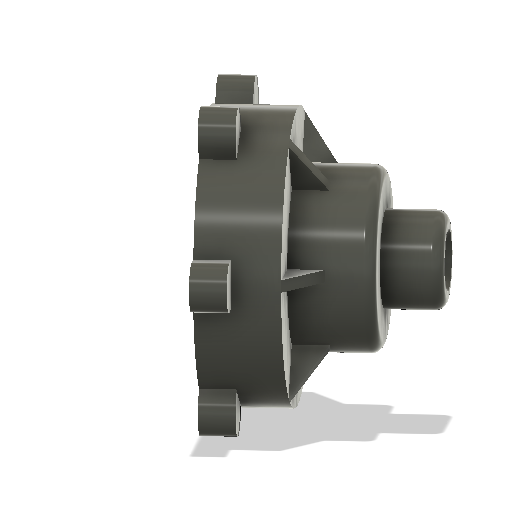

M Arm Back Connector
M Arm Back Connector3D Print
M Arm
M Arm3D Print

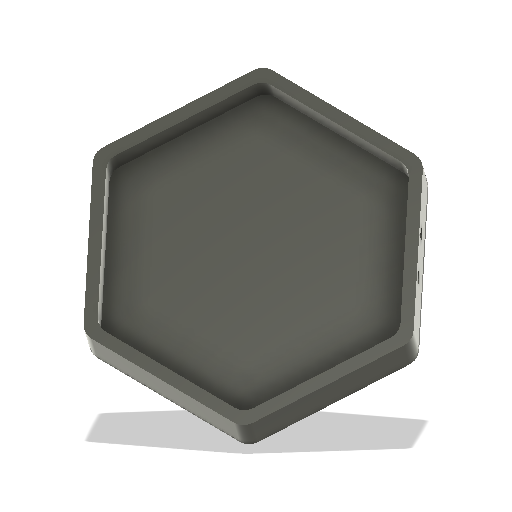

M Frame
M Frame3D Print
M Arm Connection Tube
M Arm Connection Tube3D Print

🔁 Mirror — Common Printing Objects

2 types × 1 each

These parts are shared servo components required for the Mirror assembly.

Servo MG996R Casings
Servo MG996R Casings3D Print × 1
Servo MG996R Door Panel
Servo MG996R Door Panel3D Print × 1

🛒 Mirror — Parts to Purchase

Hardware

The following items must be purchased for the Mirror assembly.

MG996R or DS3218 Servo
MG996R or DS3218 Servo ×1Purchase
MG996R or DS3218 Pro 20KG 180° digital servo
Servo Bolt
Servo Bolt ×4Purchase
Standard servo mounting bolt
Servo MG996R Horn
Servo MG996R Horn ×1Purchase
Standard MG996R servo horn
